Componente 01
Componente
SLEEVE BODY
Grado
ABS GRADE EH36 OR EN10225 S355 OR EQUIV.
Pipeline Integrity

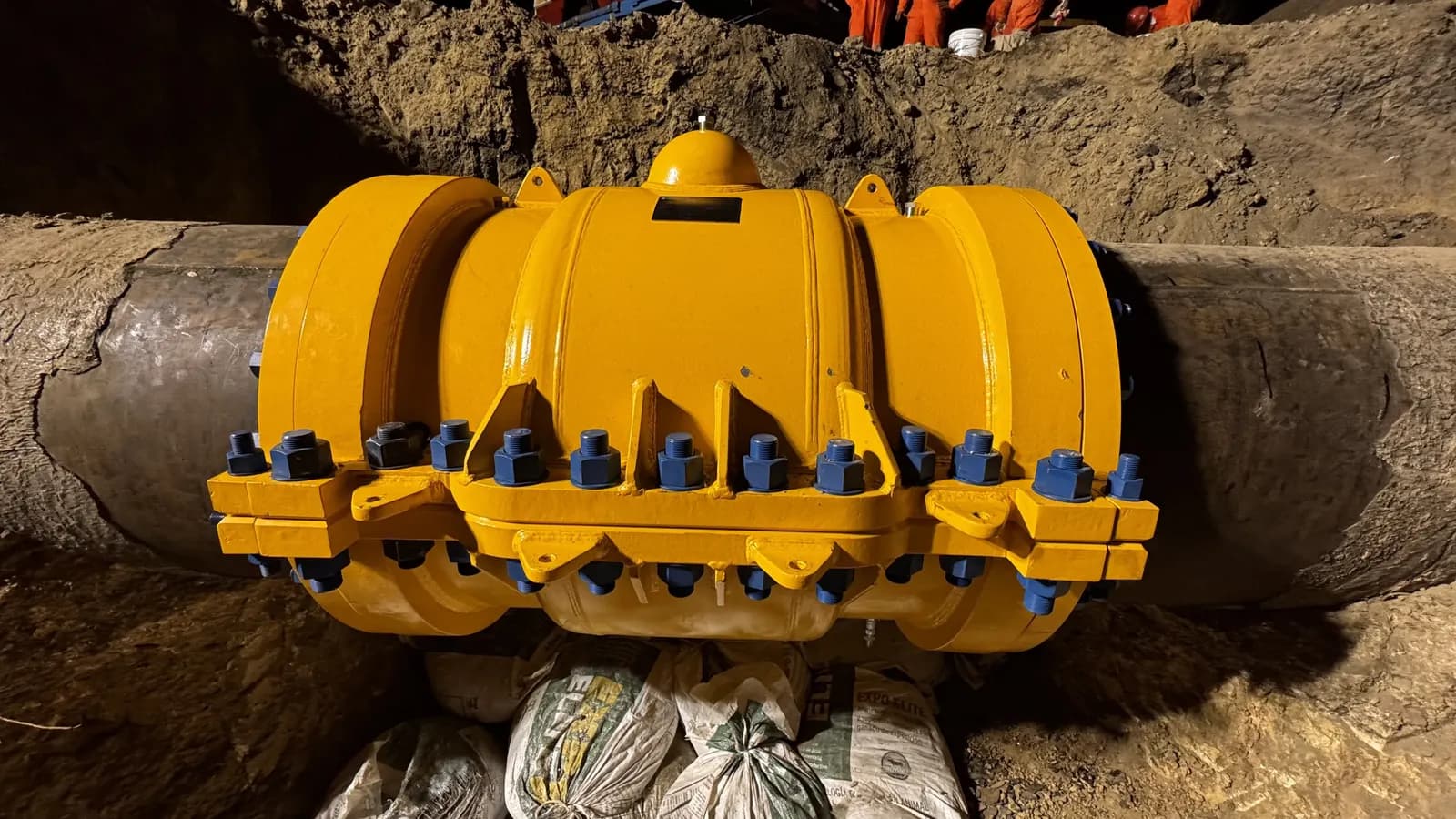

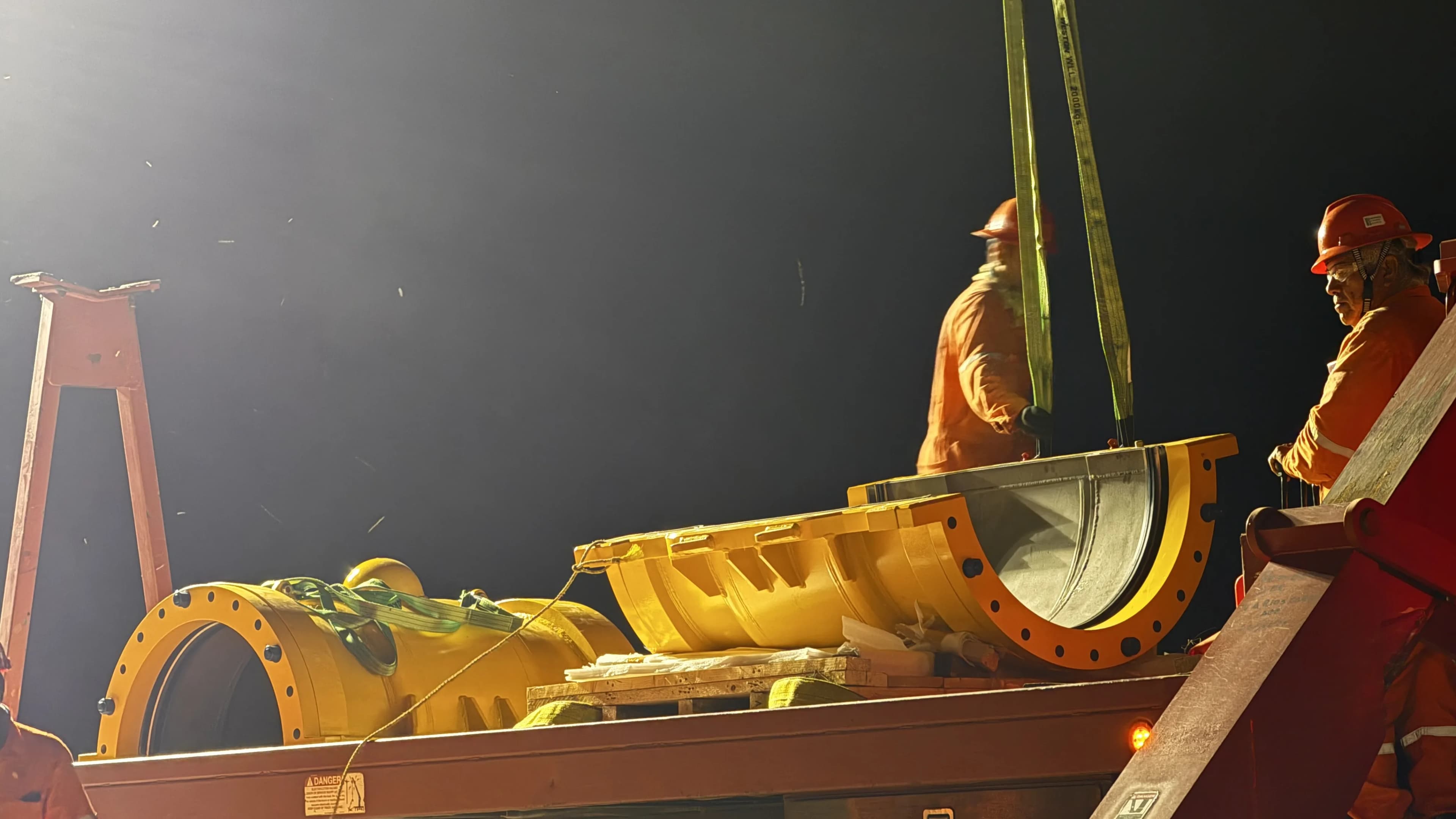

Permanent Bolted Sleeve
A solution designed to repair damage and permanently strengthen Offshore and Onshore pipelines.
A proven methodology for issues that put pipeline integrity at risk
- Wall loss.
- Corrosion.
- Cracks.
- Leaks.
No.
Componente
Grado
01
SLEEVE BODY
ABS GRADE EH36 OR EN10225 S355 OR EQUIV.
02
FLANGE LENGTH
ABS GRADE EH36 OR EN10225 S355 OR EQUIV.
03
TRANSITION FLANGES
ABS GRADE EH36 OR EN10225 S355 OR EQUIV.
04
FINAL CLOSURE FLANGE
ABS GRADE EH36 OR EN10225 S355 OR EQUIV.
05
LOAD GRIP
ABS GRADE EH36 OR EN10225 S355 OR EQUIV.
06
CIRCUMFERENTIAL BOLTS
ASTM A193 GRADE B7
07
LONGITUDINAL BOLTS
ASTM A193 - B7
08
NUTS
ASTM A194 GRADE 2H
09
LONGITUDINAL NBR SEALS
NBR (Nitrile-butadiene rubber) BS EN 682:2002
10
POLYMERIC CLOSURE SEALS
GRAPHITE + POLYURETHANE POLYMER
11
ALUMINUM RINGS
ALUMINUM 6061
Componente 02
Componente
FLANGE LENGTH
Grado
ABS GRADE EH36 OR EN10225 S355 OR EQUIV.
Componente 03
Componente
TRANSITION FLANGES
Grado
ABS GRADE EH36 OR EN10225 S355 OR EQUIV.
Componente 04
Componente
FINAL CLOSURE FLANGE
Grado
ABS GRADE EH36 OR EN10225 S355 OR EQUIV.
Componente 05
Componente
LOAD GRIP
Grado
ABS GRADE EH36 OR EN10225 S355 OR EQUIV.
Componente 06
Componente
CIRCUMFERENTIAL BOLTS
Grado
ASTM A193 GRADE B7
Componente 07
Componente
LONGITUDINAL BOLTS
Grado
ASTM A193 - B7
Componente 08
Componente
NUTS
Grado
ASTM A194 GRADE 2H
Componente 09
Componente
LONGITUDINAL NBR SEALS
Grado
NBR (Nitrile-butadiene rubber) BS EN 682:2002
Componente 10
Componente
POLYMERIC CLOSURE SEALS
Grado
GRAPHITE + POLYURETHANE POLYMER
Componente 11
Componente
ALUMINUM RINGS
Grado
ALUMINUM 6061
El servicio incluye:

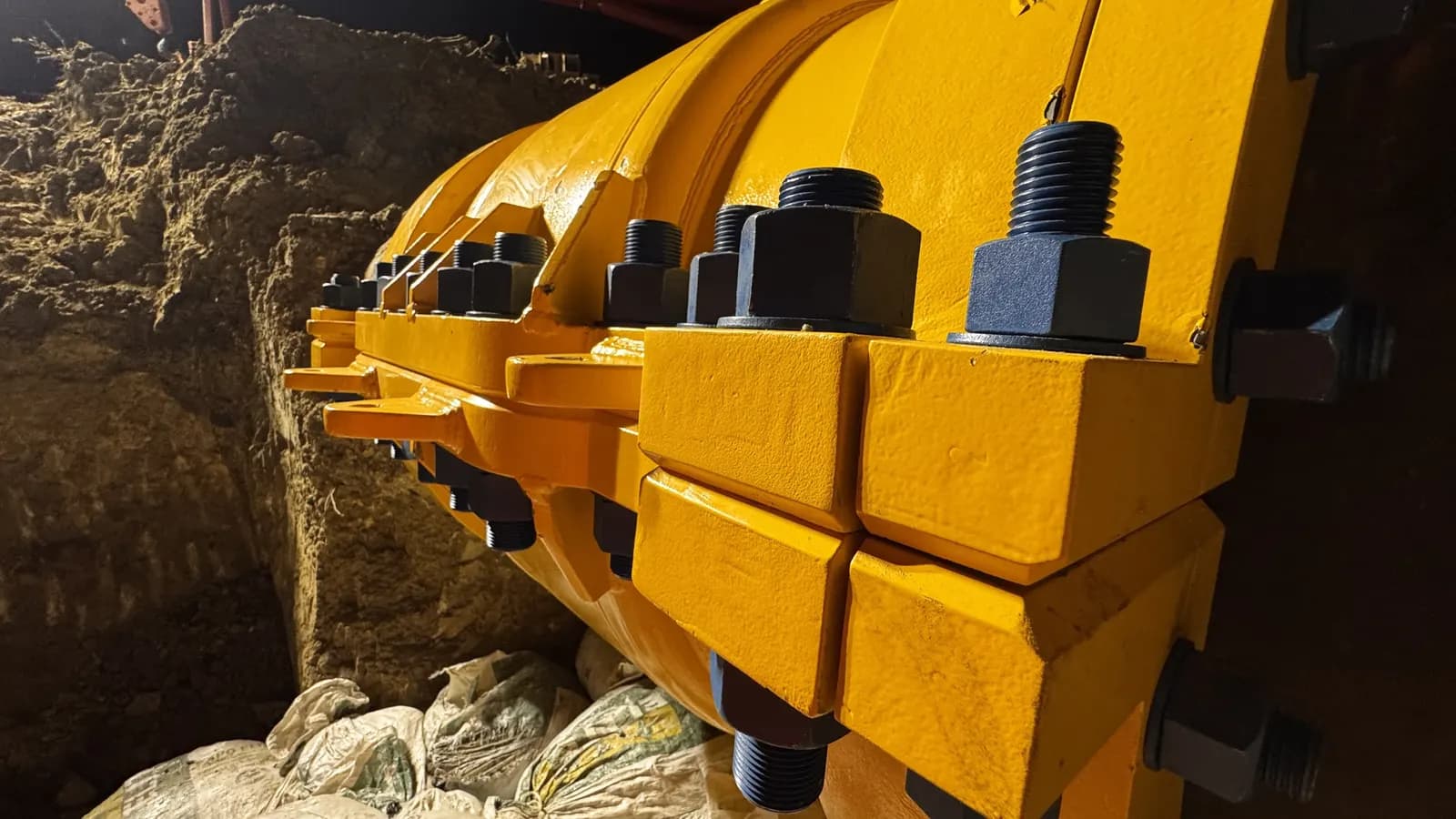

Design and Engineering
Finite Element Analysis

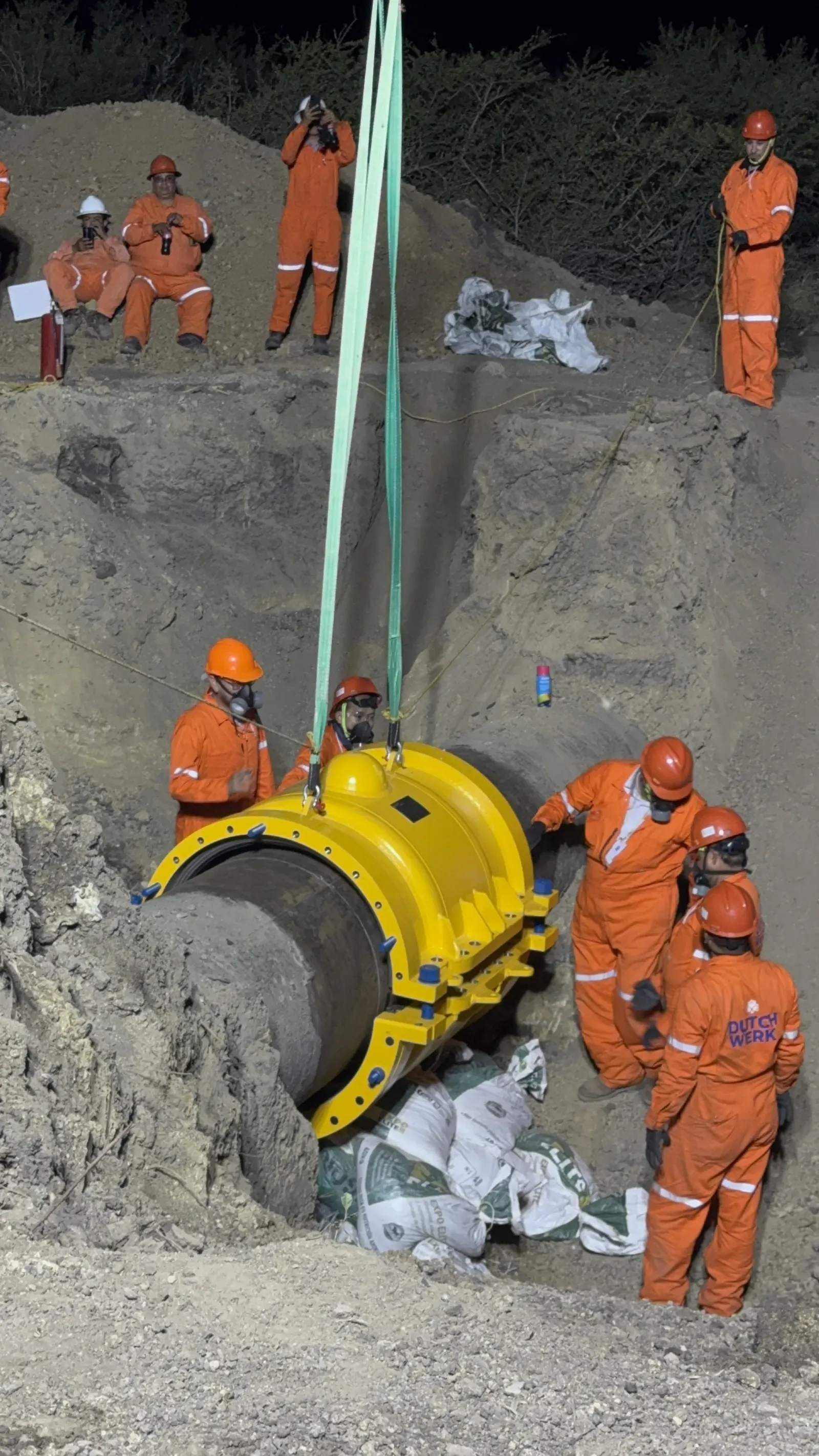

Manufacturing

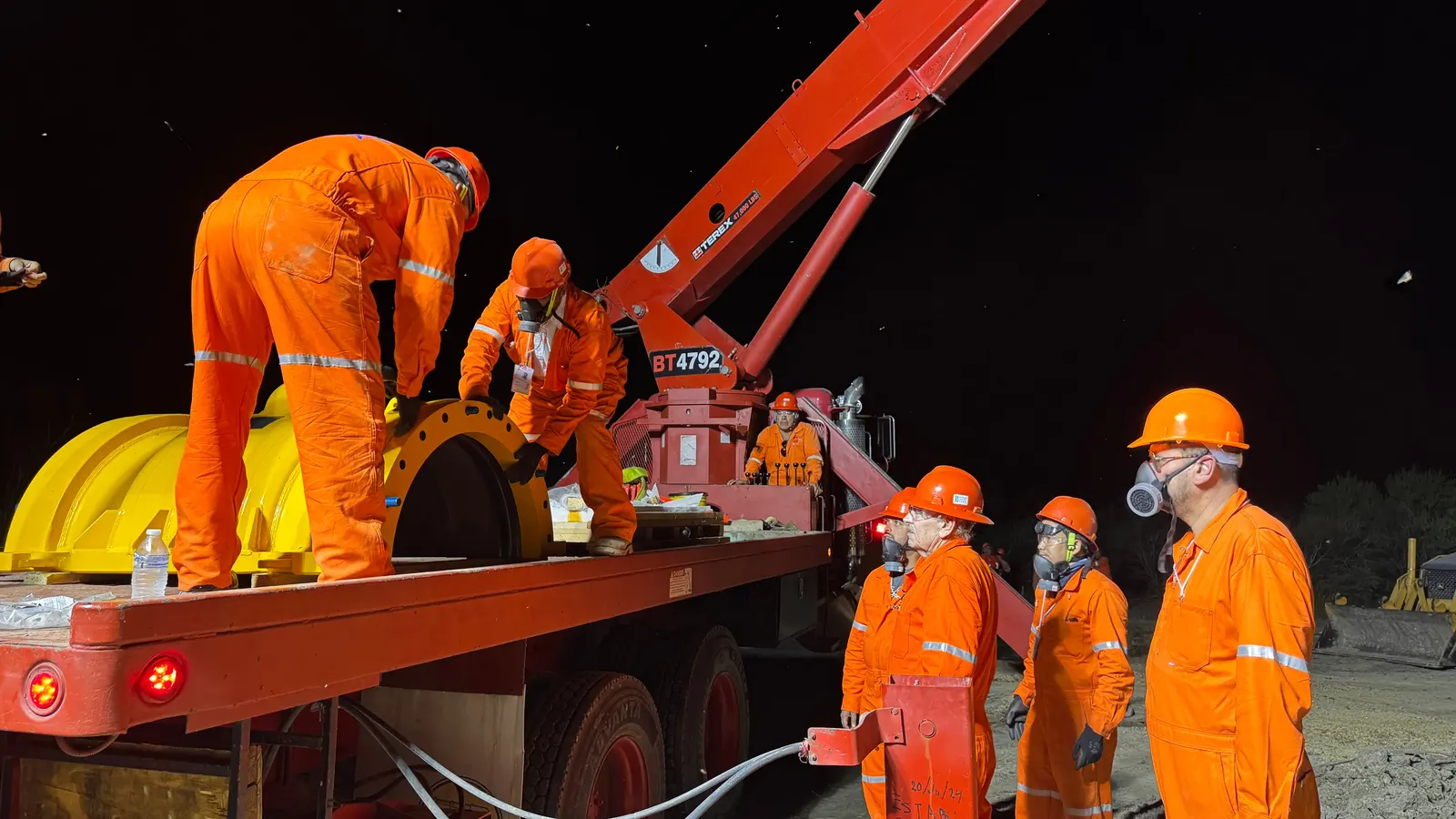

Welding and Machining

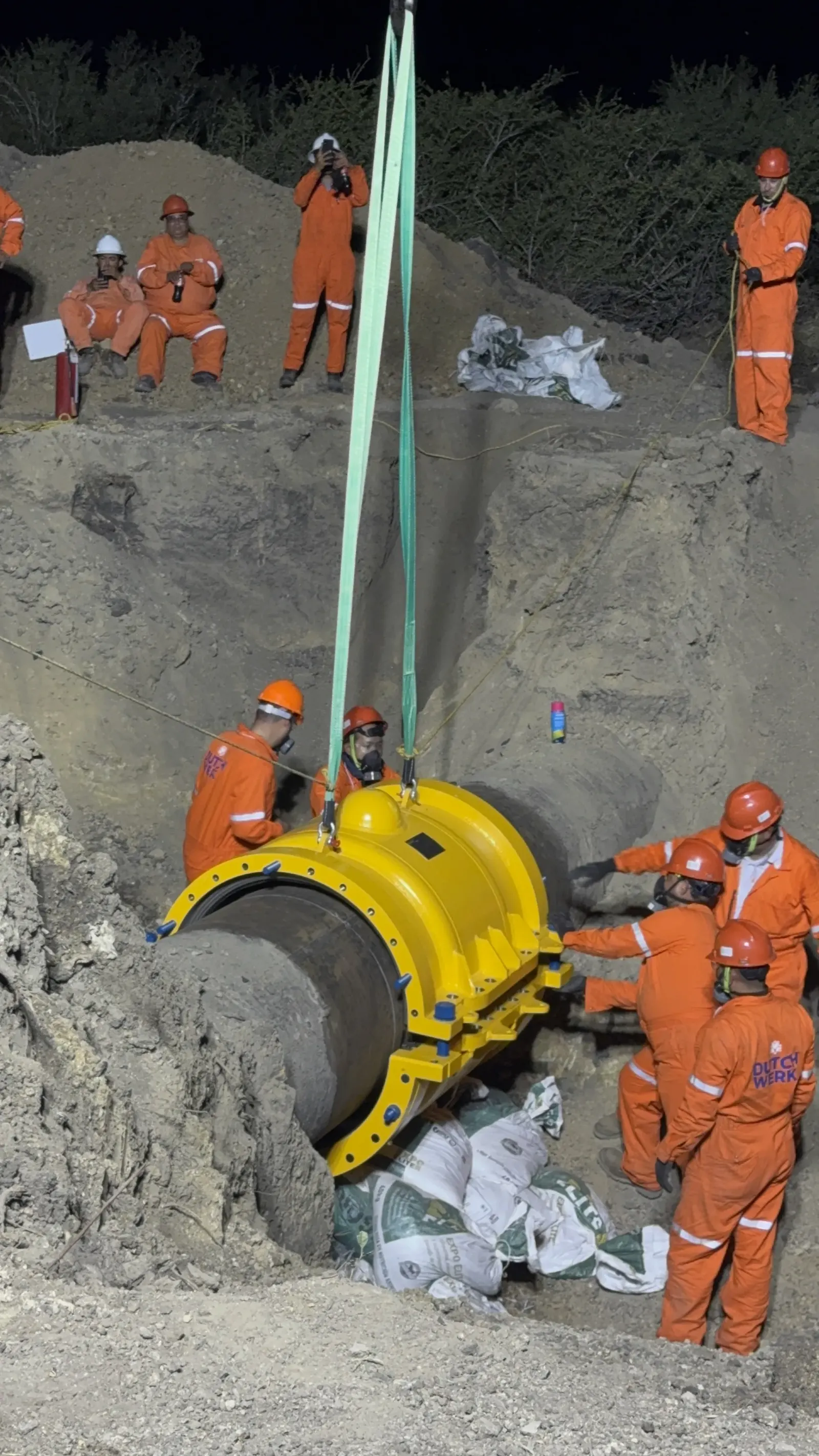

Hydrotest
Training
